Connection Methods of M12 Circular Connectors
Connection Methods of M12 Circular Connectors

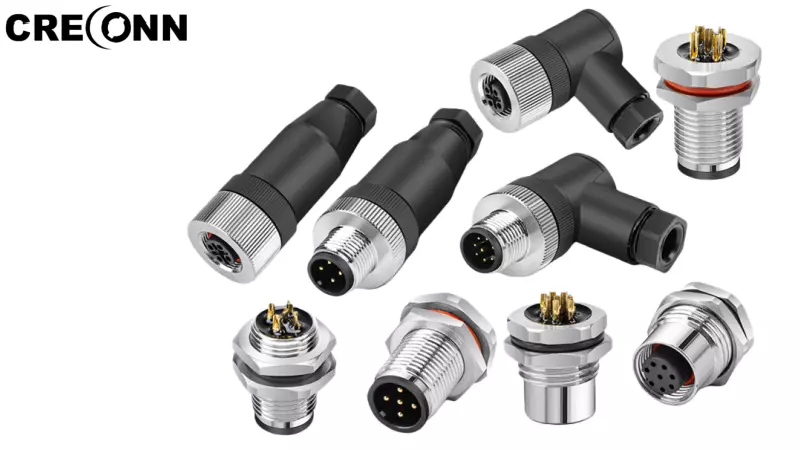

In the fields of industrial automation and sensors, M12 circular connectors are ubiquitous. However, did you know that selecting the correct connection method for them is crucial to the stability of equipment and maintenance efficiency?
Basically, M12 connectors feature the following mainstream connection methods:

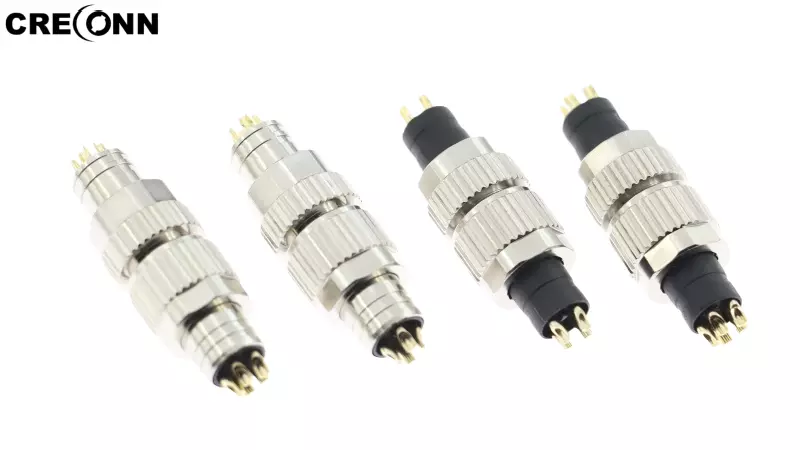

1. Threaded Connection
(This is the most common and classic type, which achieves locking by rotating the threads on the connector housing.)
Advantages: Secure connection, excellent anti-vibration performance, and high reliability.
Application Scenarios: Widely used in various sensors, actuators, industrial Ethernet, and other occasions requiring high stability.
2. Snap-in Connection
(It features a distinct "click" sound! By pressing the connector, the internal snap mechanism locks automatically.)
Advantages: Quick plugging and unplugging, saving installation time, especially suitable for narrow spaces or areas requiring frequent maintenance.
Application Scenarios: Fieldbus devices, IO-Link modules, etc.
3. Push-Pull Connection
(A more advanced quick-locking method. It can be connected by simply pushing in, and disconnected by pulling the collar.)
Advantages: Extremely fast and convenient operation, and can provide high protection level and reliable vibration protection.
Application Scenarios: Applications with high requirements for plugging efficiency and sealing, such as robots and vision systems.
How to Choose?
Need anti-vibration and anti-loosening? → Choose threaded connection.
Need quick installation? → Choose snap-in or push-pull connection.
Limited budget? → Threaded connection is usually more cost-effective.
