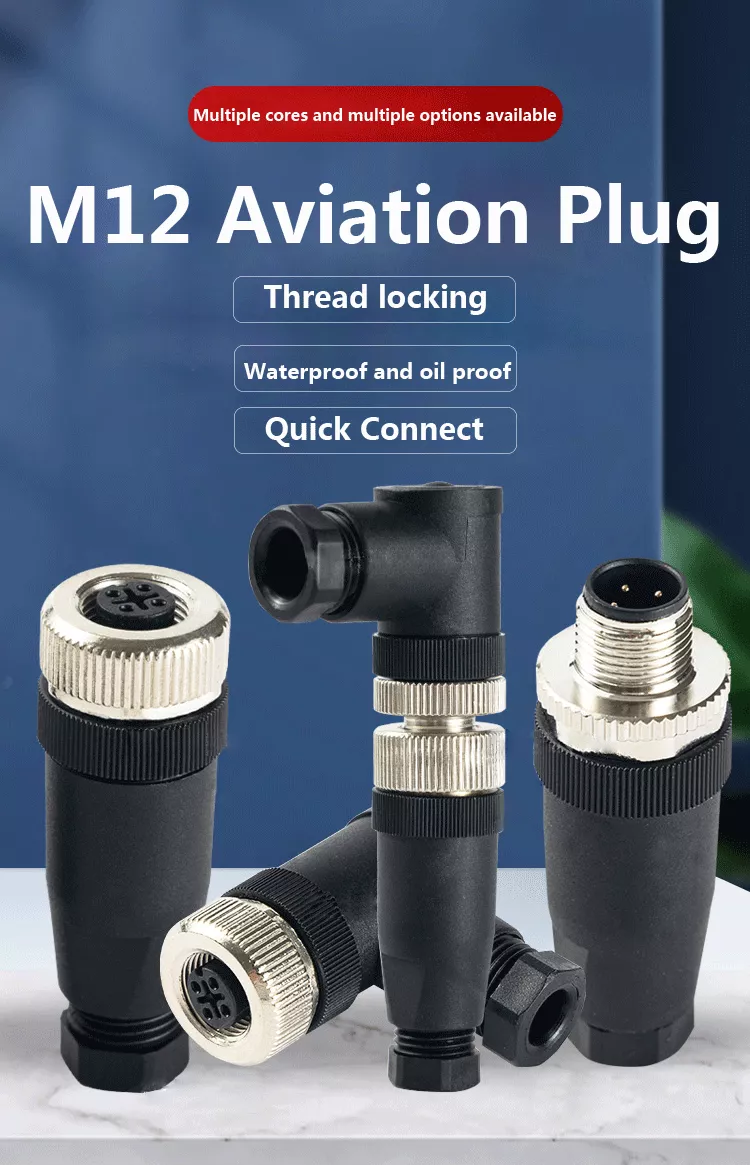

Key factors to consider when selecting the right M12 connector for your cable

Key factors to consider when selecting the right M12 connector for your cable

Firstly, identify your application needs. Be clear about the specific occasions and requirements for the M12 connector, such as supporting certain communication protocols (like EtherNet/IP, PROFIBUS) or enduring harsh environments (like high temperatures, humidity, vibration, etc.).

Secondly, understand the coding types. M12 connectors come in various coding types like A, B, and D, each serving unique purposes. For instance, A-coding is commonly used for Ethernet communication, while B-coding suits PROFIBUS DP communication.

Thirdly, choose the appropriate pin count. M12 connectors are available in 4-pin, 5-pin, 8-pin, and more options. Different pin counts cater to various signal transmission needs. For example, 4-pin M12 connectors are often used for Ethernet transmission, while 8-pin ones are more for mixed transmission of analog and digital signals.

Additionally, consider the protection rating, such as IP67 or IP68, suitable for outdoor and industrial settings. Don't forget to match the connector with your cable diameter, voltage, and current requirements.

Lastly, consider environmental conditions, compatibility with your devices, sensors, and control systems, and your budget, ensuring quality and performance meet your application needs.

Guangdong Corecon Precision Industry Co., Ltd. specializes in the production of various specifications of push-pull self-locking connectors, new energy storage connectors, M-series circular waterproof connectors, electric bicycle signal and power BMW connector harnesses, and other high-current connectors to meet the diverse needs of customers. We will provide you with professional solutions. If you have any questions or suggestions, please leave a message, we will reply as soon as possible!
