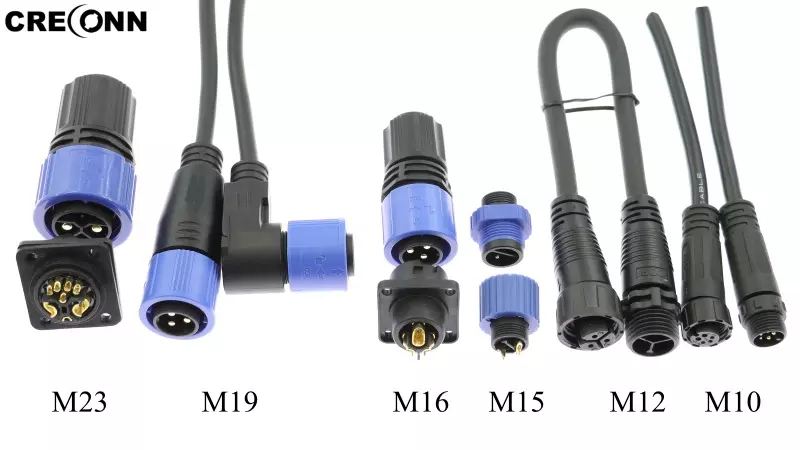

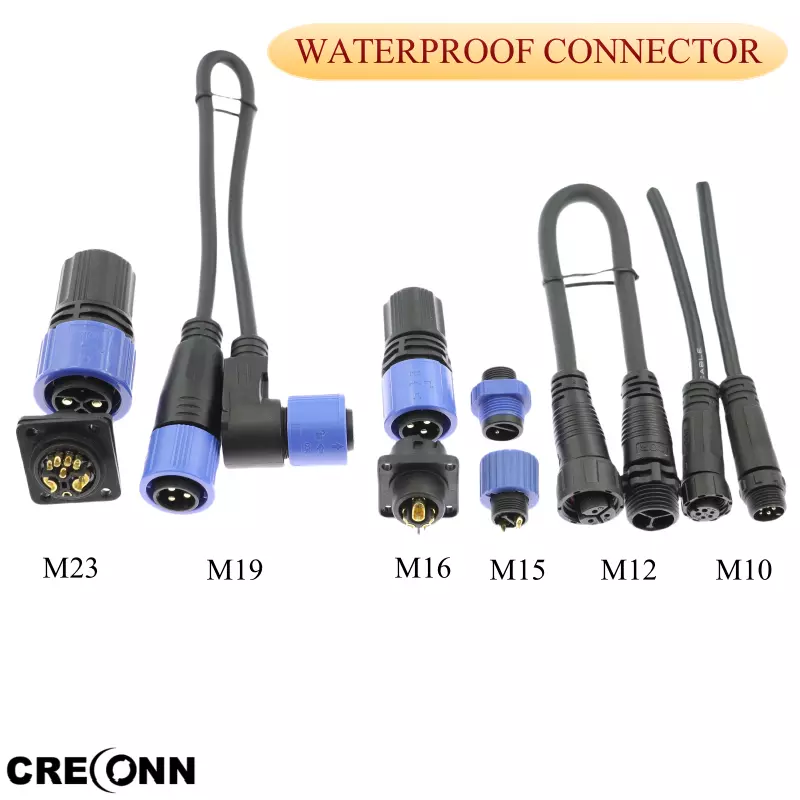

M-Series Waterproof Connector Selection Guide

M-Series Waterproof Connector Selection Guide

Ø Clarify Usage Environment and Requirements

1. Environmental Conditions: Account for humidity, dust, chemical exposure, and temperature extremes. Outdoor gear needs high protection against rain/sand; chemical settings demand corrosion-resistant materials.

2. Electrical Requirements: Define voltage, current, and signal types. High currents need strong carrying capacity; high-speed signals (e.g., Ethernet) require signal integrity focus.

3. Mechanical Needs: Note installation method, plug cycles, and vibration/impact exposure. Frequent use needs long plug life; vibrating environments require stable connections.

Ø Key Selection Parameters

1. Protection Level: IP codes (IP67, IP68) indicate dust/water resistance. IP67 works for most industrial use (1m water/30min); IP68 suits harsher environments like underwater equipment.

2. Core Count: Options (2, 3, 4, 5, 8, 12-core) depend on connected devices and signal/power needs. Simple sensors may use 2-3 cores; complex setups need multi-core.

3. Interface Type: A/B/D/X codings fit different uses. A coding for sensors/actuators; D coding for high-speed Ethernet.

4. Materials:

(1) Shell: Metal (stainless steel, aluminum) offers durability for harsh settings; plastic (PBT, PA) is lightweight/affordable but less robust.

(2) Contacts: Copper alloys with silver/gold plating. Silver-plated for good conductivity/cost; gold-plated for superior corrosion resistance and signal stability.

Ø Other Factors

1. Brand/Quality: Choose reputable brands with strict standards and certifications (CE, UL) for reliability.

2. Cost-Effectiveness: Balance purchase, installation, and maintenance costs. Prioritize value over low upfront prices.

3. Cable Compatibility: Ensure connector-cable fit (specs, crimping/welding). Follow specific cable requirements for performance and waterproofing.
