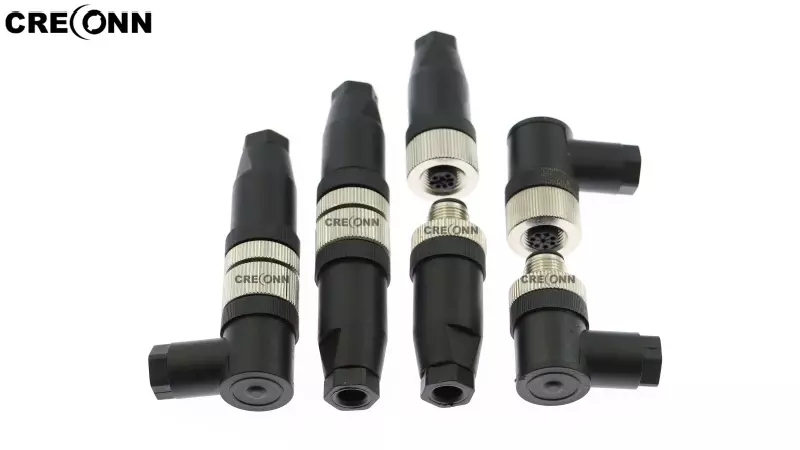

M12 Industrial Connector Repair

I. Pre-Repair Prep: Safety & Tools

1. Safety

◦ Wear insulated gloves (anti-shock for 24V/220V) and safety goggles. Use anti-static wristband for precision gear.

1. Tools & Consumables

◦ Tools: M12 wrench (M12×1.5), multimeter (continuity/resistance), tweezers/needle picks, 99.7% alcohol + swabs/cloths;

◦ Consumables: Matching M12 pins (Cu-gold/silver plated), O-rings (nitrile for oil, fluororubber for high temp).

II. 5-Step Repair Process

1. Fault Localization

• Power Off: Disconnect equipment power first to avoid pin damage.

• Visual Check: Inspect 3 points:

① Housing: Cracks/deformation (affects IP rating);

② Nut: Stripped threads/looseness (causes signal loss);

③ Pins/Inserts: Bending/breakage/oxidation.

• Replace Test: Swap with a working M12. If equipment works, fault is confirmed; else check cable/device.

2. Disassembly (No Force!)

• Cabled Type:

a. Unscrew plug/socket locking nuts with wrench;

b. Remove cable-end back nut and fixing clamp;

c. Use pick to release pin latches, pull pins in order (note pin-cable match).

• Panel-Mounted Type:

a. Remove external + internal nuts, take off socket;

b. Disassemble inserts/pins as above.

3. Fault Fix (Targeted)

4. Reassembly

• Insert pins in original order (click = locked);

• Reinstall cable clamp/back nut (no cable pulling);

• Align coding (A/B/D/S), tighten locking nut.

5. Testing

• Basic: Multimeter check (no short/open); insulation ≥100MΩ (500V DC);

• Functional: Power on, check stable signal (no sensor loss) + motor operation;

• IP67 (damp areas): Soak 1m deep 30min, no internal water.

III. Key Notes & Replacement

1. Notes

◦ Match coding (no mixing!);

◦ Never operate live;

◦ Clean with compressed air every 3 months.

1. Replace Directly If

◦ Insert inner wall worn/deformed;

◦ Housing cracked (fails IP);

◦ Pin base carbonized/melted;

◦ Faults persist after repair.
