Pogo Pin Selection Guide: 6 Key Types & Applications

Pogo Pin Selection Guide: 6 Key Types & Applications

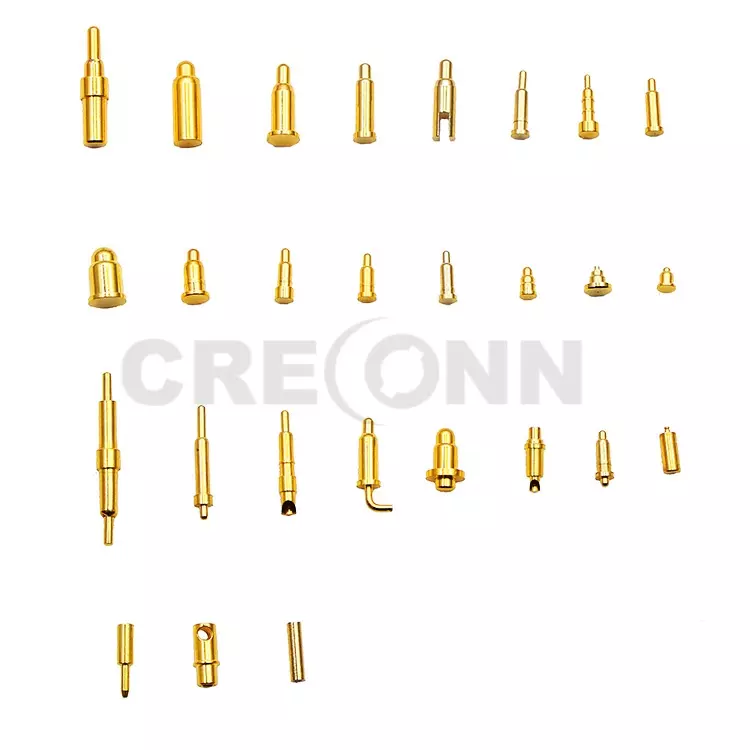

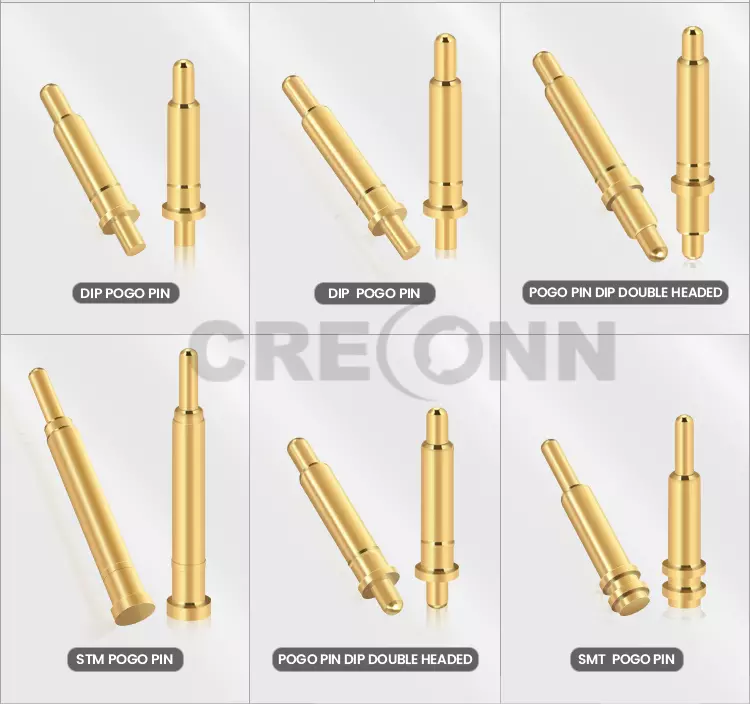

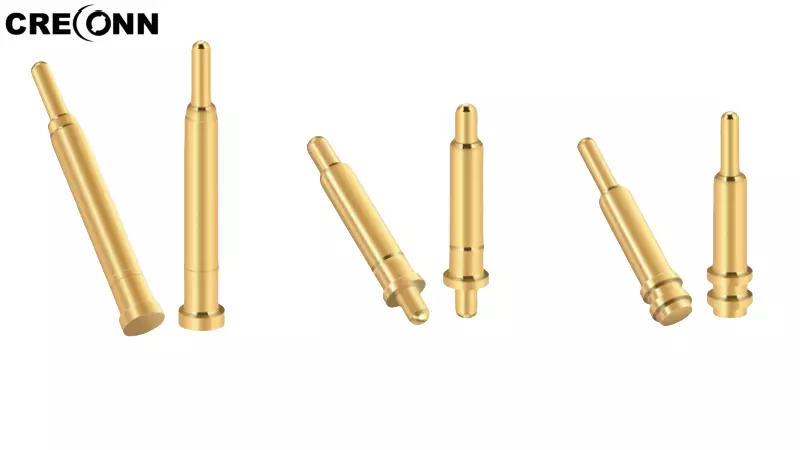

 1. Press-Fit Pogo Pins

Features:

Tail designed for direct PCB insertion (no soldering).

Fast installation, ideal for automated assembly.

Applications:

High-density PCB test fixtures

Modular devices requiring quick assembly

Note: PCB hole tolerance critical (typically 0.05-0.1mm smaller than pin diameter).

 2. Solder-Tail Pogo Pins

Features:

Solderable tail for secure connections.

High mechanical strength.

Applications:

Industrial equipment (e.g., automotive electronics)

Flexible PCB (FPC) connections

Note:  Avoid overheating during soldering to preserve spring elasticity.

 3. Knurled Pogo Pins

Features:

Textured outer sleeve for anti-rotation and retention.

Vibration-resistant.

Applications:

Plastic-embedded charging contacts (e.g., TWS earphone cases)

High-vibration environments (e.g., drones)

Note: Requires interference-fit mounting holes.

 4. Double-Ended Pogo Pins

Features:

Bidirectional spring compression.

Modular/disconnectable design.

Applications:

Removable battery contacts (e.g., power tools)

Dual-sided test probes

Note: Ensure symmetrical stroke to avoid uneven loading.

 5. Flat-Plunger Pogo Pins

Features:

Large contact area, low wear.

Low impedance for high-current transfer.

Applications:

Wireless charging contacts (e.g., smartwatches)

High-current connections (>5A fast charging)

Note: Requires flat mating surfaces to prevent misalignment.

 6. Right-Angle Pogo Pins

Features:

90° bent tail for space savings.

Enables compact layouts.

Applications:

Side-connect devices (e.g., endoscopes, foldable phones)

Space-constrained PCB edge connections

Note: Avoid stress concentration at bend points.

Quick Selection Table

Selection Checklist

1. Frequent mating? → Double-ended or flat-plunger (long cycle life).

2. Space limits? → Right-angle or micro press-fit.

3. Current rating? → Flat-plunger or thick-gold plating.

4. Vibration present? → Knurled or guided versions.
